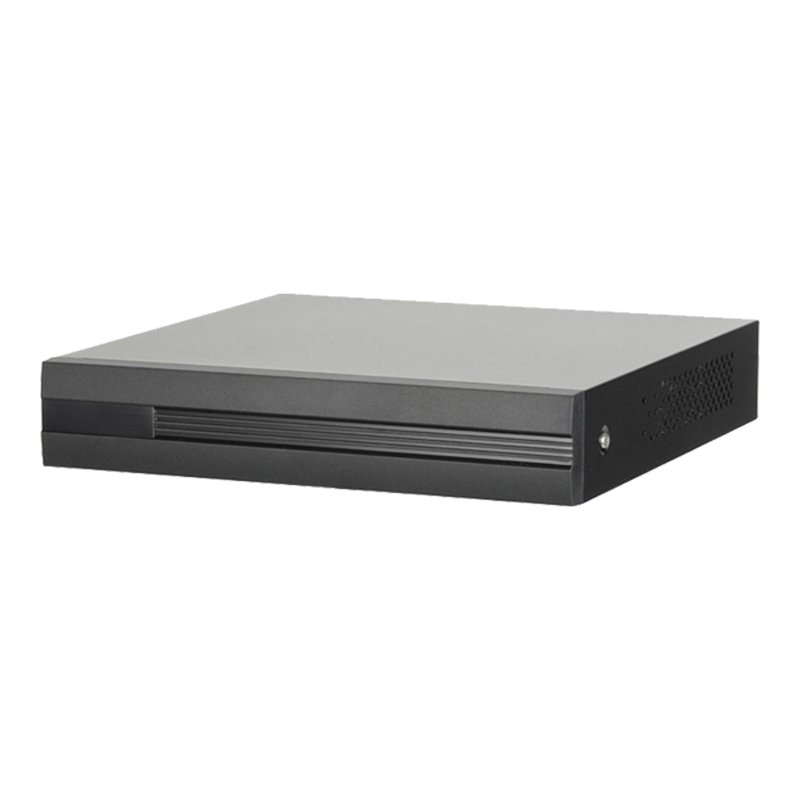

XVR-3104HS-5MP-LITE 4-Channel 5MP Lite Digital Video Recorder
SKU: XVR-3104HS-5MP-LITECopied!
XVR-3104HS-5MP-LITE is a compact 4-channel Penta-brid DVR designed for high-definition surveillance applications. It supports multiple video inputs, including HDCVI, AHD, TVI, CVBS, and IP, allowing for flexible camera integration. With a maximum resolution of 5MP, this recorder ensures clear and detailed video capture.
In Stock
Ready to ship • 56 available
Product Description
Key Features
4 Channels: Supports up to 4 analog channels.
Resolution Support: Up to 5MP recording.
Multi-Input Compatibility: HDCVI, AHD, TVI, CVBS, and IP video inputs.
Video Compression: H.265+ for efficient storage.
Playback: Supports synchronous playback of up to 4 channels.
Audio Support: 1-channel RCA audio input.
Storage: 1 SATA interface, supporting up to 10TB HDD.
Network Interface: 1 RJ-45 port (10/100/1000Mbps).
USB Ports: 2 × USB 2.0.
Technical Specifications
Specification Details
Model XVR-3104HS-5MP-LITE
Channels 4
Resolution Support Up to 5MP
Video Inputs HDCVI, AHD, TVI, CVBS, IP
Video Compression H.265+
Audio Input 1 × RCA
Storage Interface 1 × SATA (up to 10TB HDD)
Network Interface 1 × RJ-45 (10/100/1000Mbps)
USB Ports 2 × USB 2.0
Playback Synchronous 4-channel playback
Operating Temperature -10°C to +55°C
Power Supply 12V DC
Dimensions (W×H×D) 315 mm × 45 mm × 240 mm
Weight 1.2 kg
Applications
The XVR-3104HS-5MP-LITE is ideal for:
Residential Security: Protecting homes with high-resolution video surveillance.
Commercial Properties: Monitoring offices, retail spaces, and warehouses.
Industrial Sites: Enhancing security in factories and manufacturing facilities.
Public Spaces: Surveilling parking lots, streets, and public areas.
