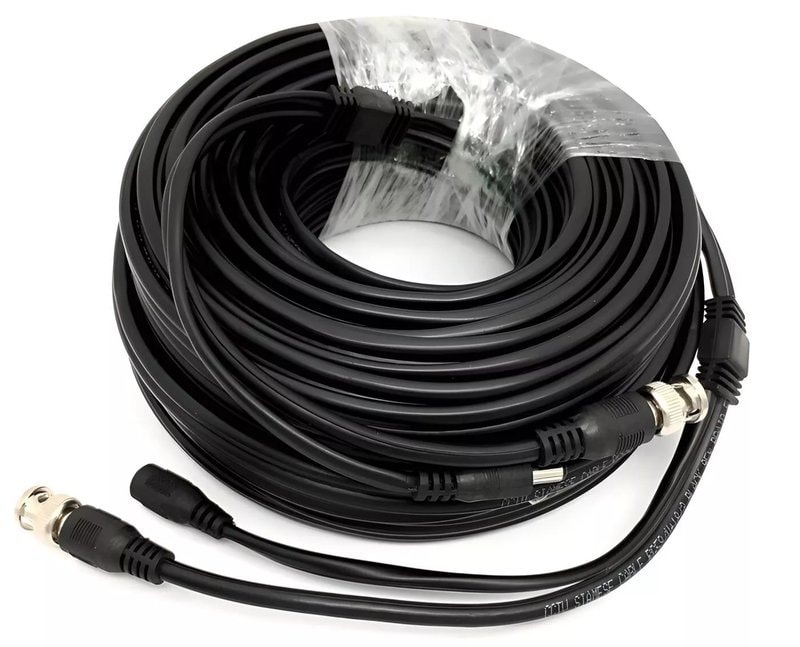

RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
SKU: RG59P-CABLE-20MCopied!
20m prefabricated RG59 shotgun CCTV lead with integrated 75Ω video coax and 2-core DC power cable. BNC male connectors on RG59 ends for direct connection between camera BNC output and DVR/NVR input. Parallel red/black DC power pair with 2.1mm DC barrel plug (camera) and socket/bare tails (recorder end). Supports analogue CVBS, HD-TVI, AHD, CVI video formats over coax up to practical RG59 limits. Moulded strain-relief connectors for reliable plug-and-play installation; black PVC outer jacket. Extended length suitable for medium-distance camera runs in residential/commercial CCTV systems.
In Stock
Ready to ship • 6170 available
Product Description
The RG59P-CABLE-20M provides a 20m complete video+power solution for connecting a single CCTV camera back to the recording equipment using RG59 coaxial cable with parallel DC power conductors in shotgun configuration. Factory-installed BNC male plugs terminate the 75Ω RG59 video line at both ends, enabling secure bayonet connections from the camera's BNC output directly to the DVR/NVR BNC input without field crimping. The integrated two-core power cable, typically 18-22AWG red (positive)/black (negative), ends in a standard 2.1mm DC barrel plug for camera connection and either matching socket or pre-stripped tails at the equipment end for attachment to centralised 12VDC multi-channel PSUs.
This assembly supports traditional analogue CVBS video transmission as well as modern HD-over-coax formats (HD-TVI, AHD, CVI) within RG59 performance limits—typically 250-400m for CVBS and 100-200m for HD variants depending on camera quality and recorder sensitivity. The black PVC outer jacket offers mechanical protection and UV resistance suitable for internal trunking, wall runs or sheltered external installations when properly clipped. Shotgun binding keeps conductors neatly paired, simplifying pulls through joists, conduit or surface clips while minimising installation time versus separate cables.
Prefabricated construction with moulded strain relief ensures durability against repeated handling at camera heads and rack equipment. Deployed in small-to-medium surveillance systems, this 20m lead connects bullet, dome or turret cameras directly to DVRs or serves as field extension from junction boxes where centralised power distribution is implemented, integrating seamlessly with rack PSUs, patch panels and NVR enclosures in professional security infrastructure.
