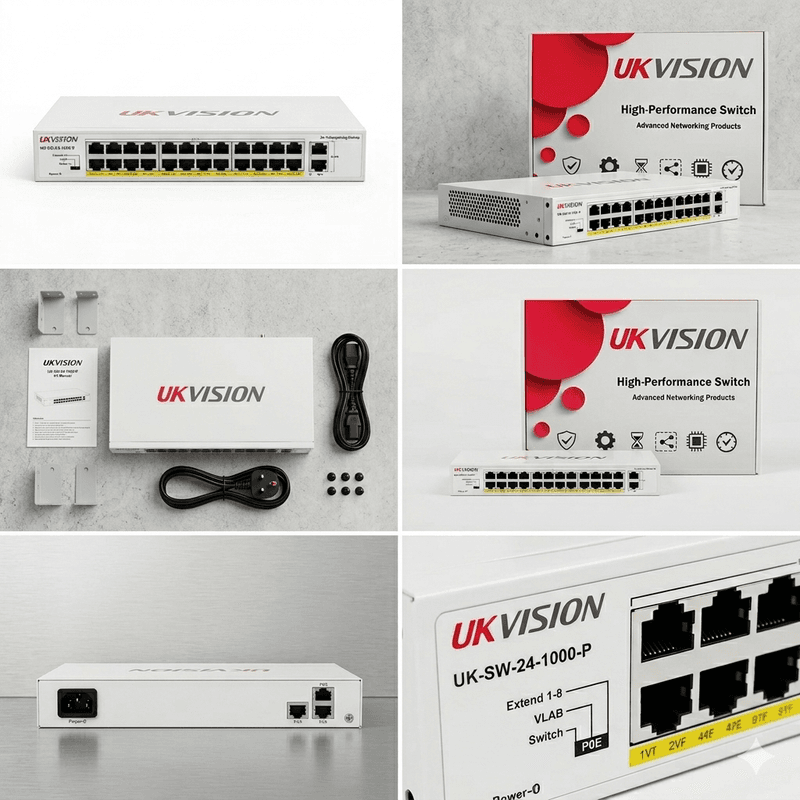

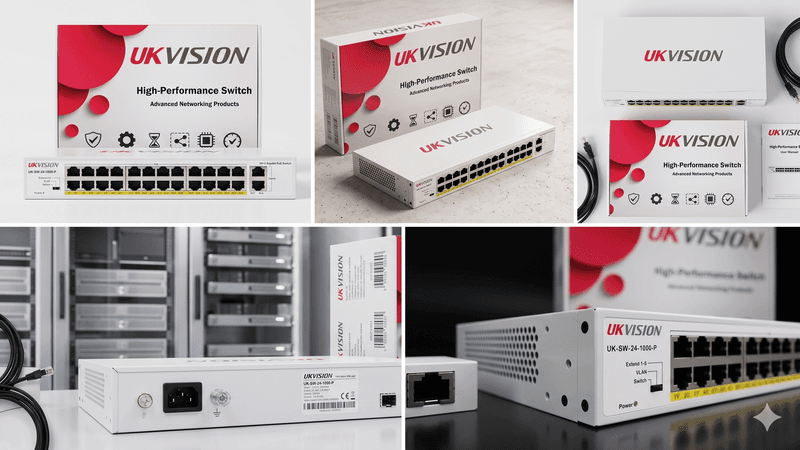

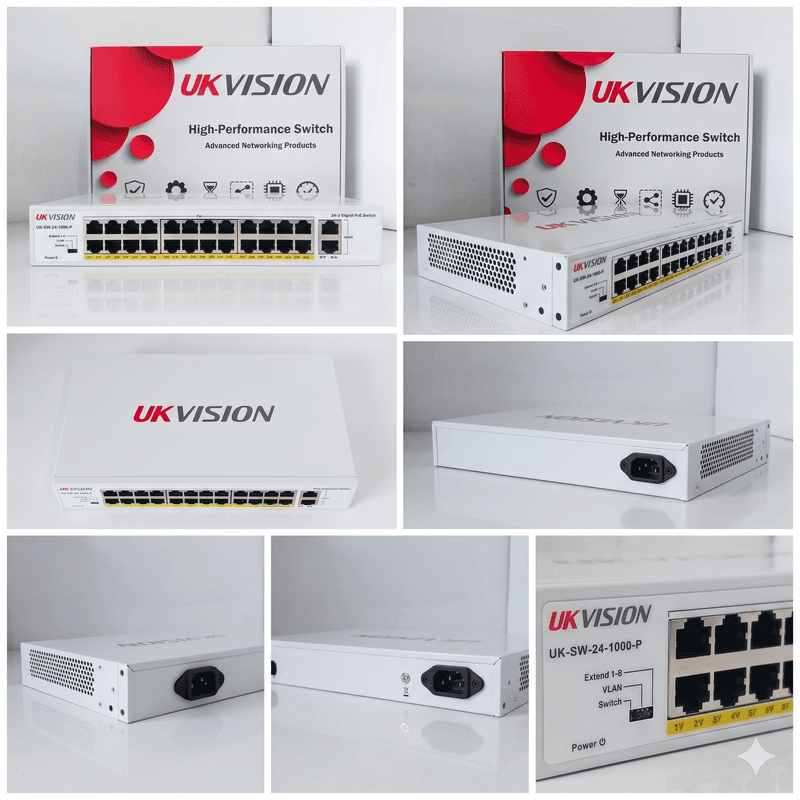

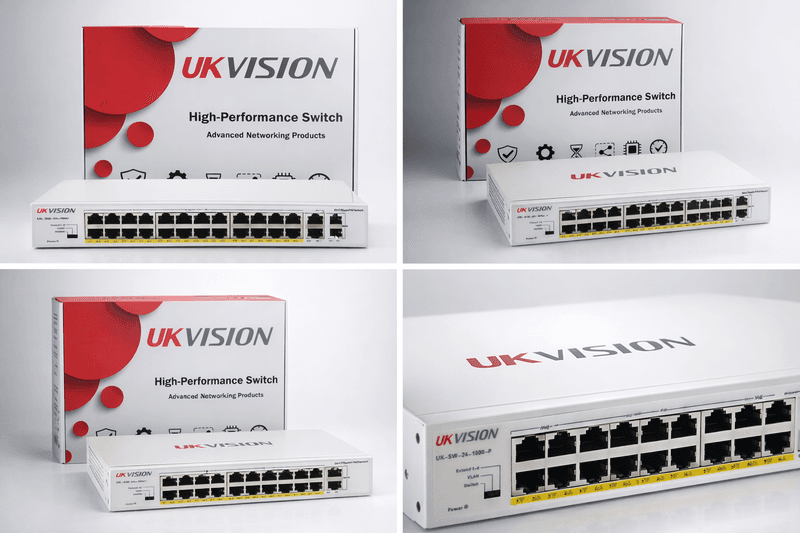

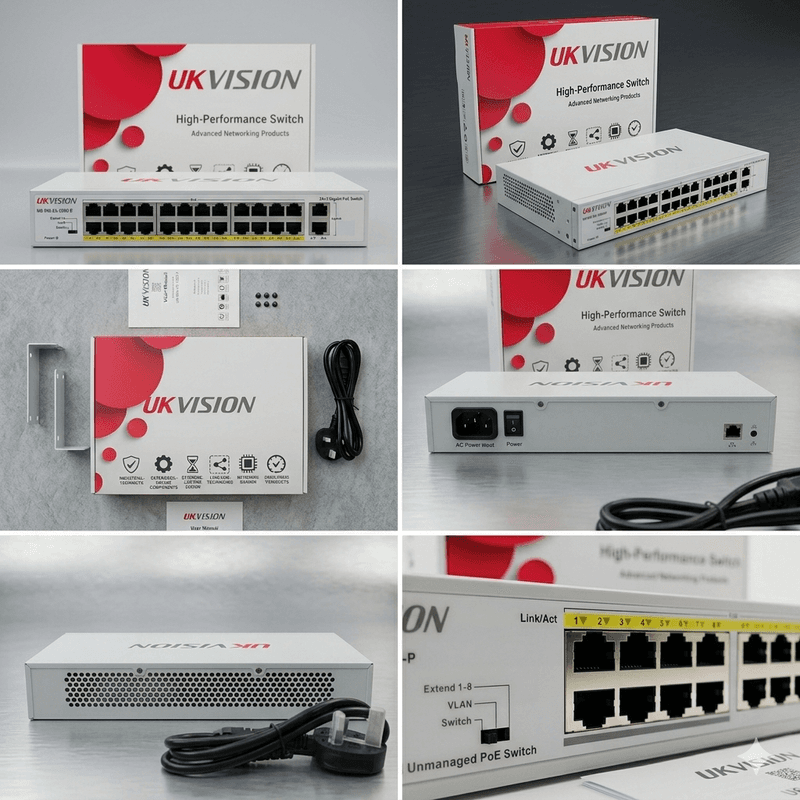

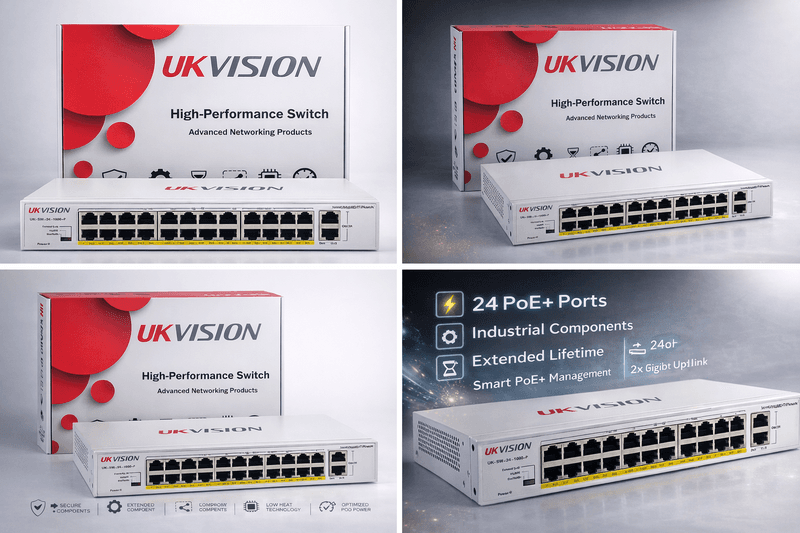

UKVISION UK-SW-24-1000-P 24-Port Gigabit PoE Switch 2 Uplink
SKU: UK-SW-24-1000-P
24 × 10/100/1000Mbps PoE+ RJ45 ports with auto-negotiation 2 × Gigabit RJ45 uplink ports (non-PoE) IEEE 802.3af/at PoE standard supported Up to 30W per PoE port (Port 1–24) Total PoE power budget: 150W Extend mode supports up to 250m transmission distance VLAN mode for port isolation and traffic control Auto MDI/MDIX on all ports Rack-mountable 11-inch chassis
In Stock
Ready to ship • 165 available
Product Description

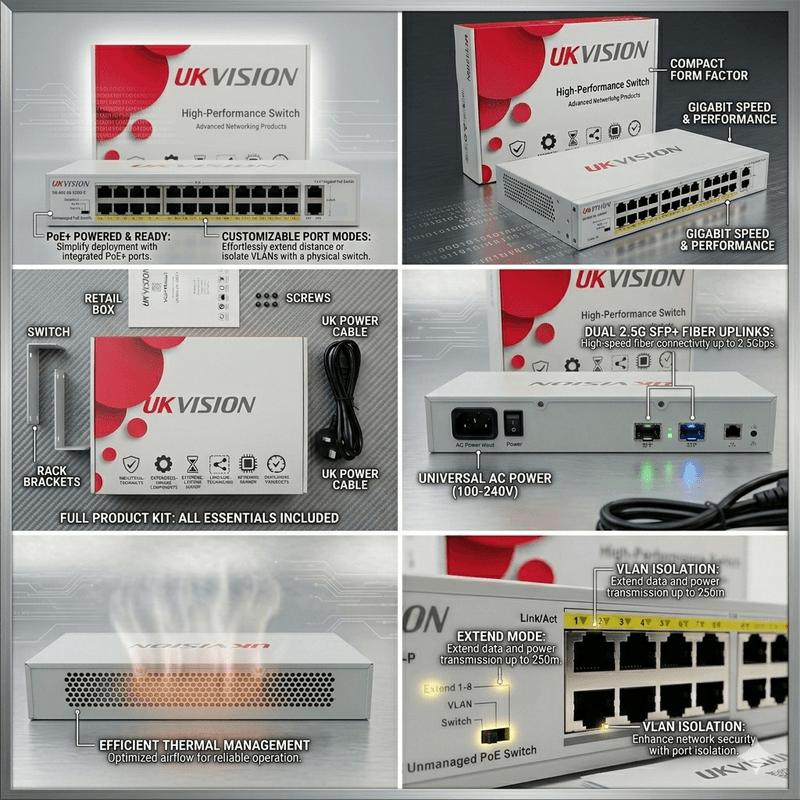

The UKVISION UK-SW-24-1000-P is an unmanaged Gigabit PoE switch designed for medium to large-scale CCTV and network deployments requiring centralised power and data distribution. It features twenty-four 10/100/1000Mbps PoE+ RJ45 ports compliant with IEEE 802.3af/at standards, delivering up to 30W per port for IP cameras, wireless access points, and other PoE-enabled devices. The switch includes two Gigabit RJ45 uplink ports, allowing high-speed connectivity to NVRs, routers, or core network switches. All ports support auto-negotiation and Auto MDI/MDIX, enabling seamless integration with standard Ethernet cabling without the need for crossover cables. With a total PoE power budget of 150W, the unit supports efficient power allocation across multiple connected devices within defined limits. Extend mode allows transmission distances up to 250 metres at reduced bandwidth, making it suitable for extended surveillance installations. VLAN mode provides port isolation to minimise broadcast traffic and enhance network stability in CCTV environments. Designed with a rack-mountable 11-inch chassis, the switch is suitable for installation in network cabinets or equipment racks. Its unmanaged, plug-and-play design allows rapid deployment without configuration, making it ideal for installers and system integrators.
