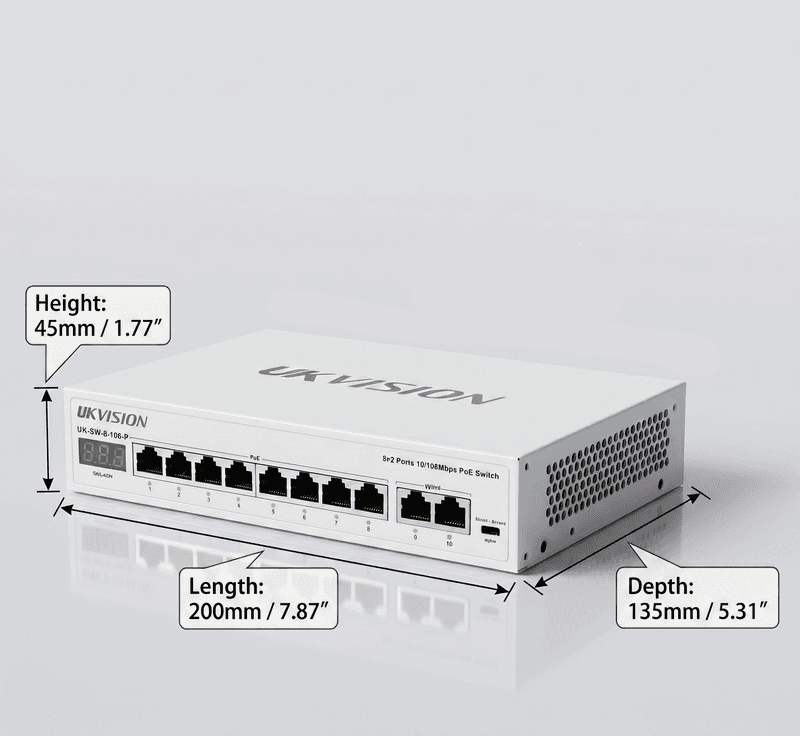

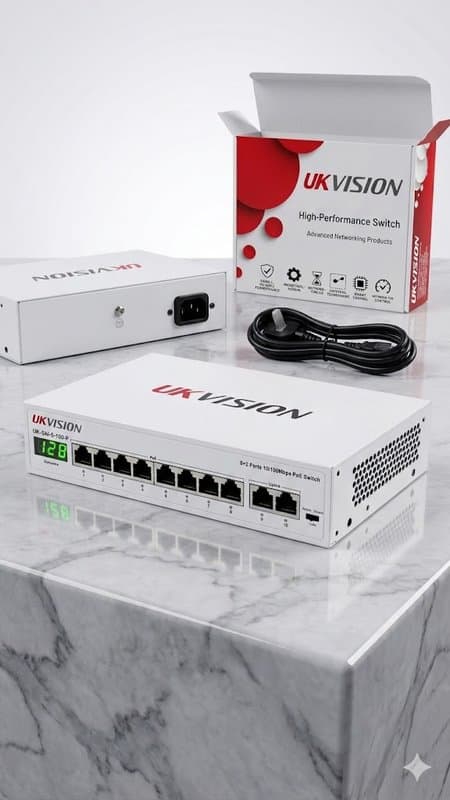

UKVISION UK-SW-8-100-P 8-Port PoE Switch 2 Uplink 250m Extend
SKU: UK-SW-8-100-P

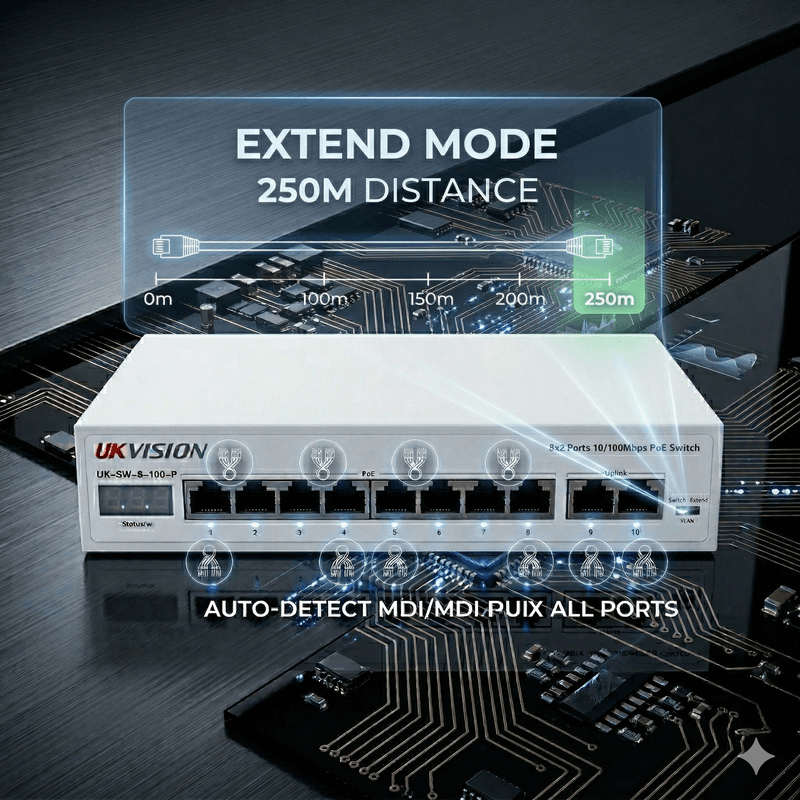

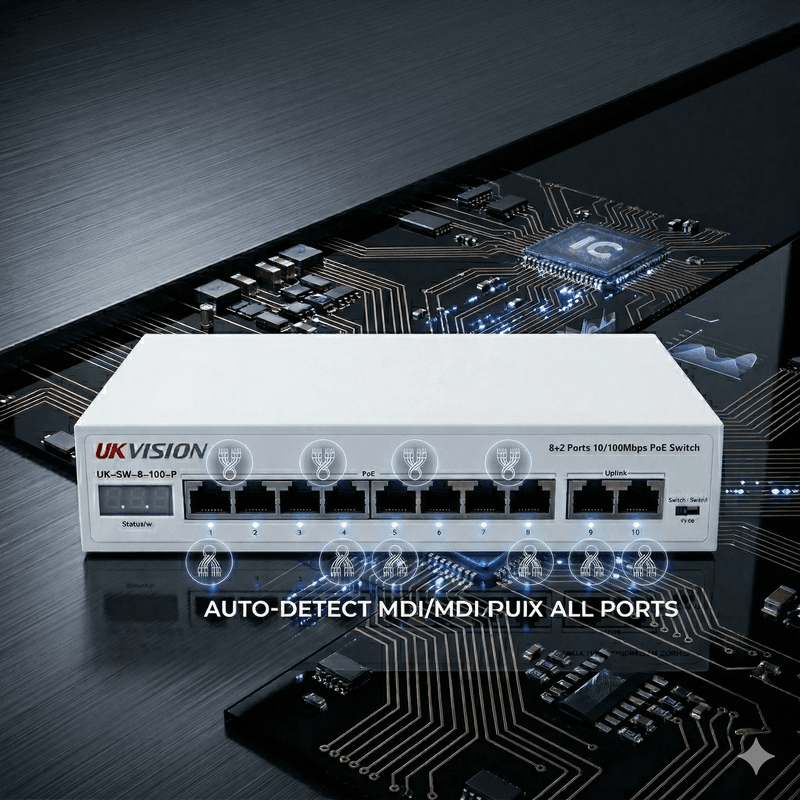

8 × 10/100Mbps PoE+ RJ45 ports with auto-negotiation 2 × uplink RJ45 ports for network connection IEEE 802.3af/at PoE standard supported Up to 30W per PoE port (Port 1–8) Total PoE power budget: 65W Extend mode supports up to 250m transmission distance VLAN mode for port isolation and broadcast control Auto MDI/MDIX on all ports Digital power display for real-time monitoring
In Stock
Ready to ship • 578 available
Product Description
The UKVISION UK-SW-8-100-P is an unmanaged PoE switch designed for small to medium CCTV deployments requiring power and data transmission over a single Ethernet cable. The unit provides eight 10/100Mbps RJ45 PoE+ ports compliant with IEEE 802.3af/at standards, delivering up to 30W per port for IP cameras, access points, and other PoE-enabled devices. In addition to the PoE ports, the switch includes two uplink RJ45 ports for connection to NVRs, routers, or core network switches. Auto-negotiation and Auto MDI/MDIX are supported across all ports, simplifying installation and ensuring compatibility with standard Ethernet cabling. The switch features a total PoE power budget of 65W, allowing stable operation across multiple connected devices within its power capacity. Extend mode enables long-distance transmission up to 250 metres at reduced bandwidth, making it suitable for extended CCTV cable runs. A built-in VLAN mode allows port isolation to reduce network congestion and enhance security within surveillance networks. The integrated digital power display provides real-time visibility of power consumption, assisting with system monitoring and load management. The device operates as a plug-and-play unmanaged switch, requiring no configuration, making it suitable for rapid deployment in CCTV and basic network installations.
