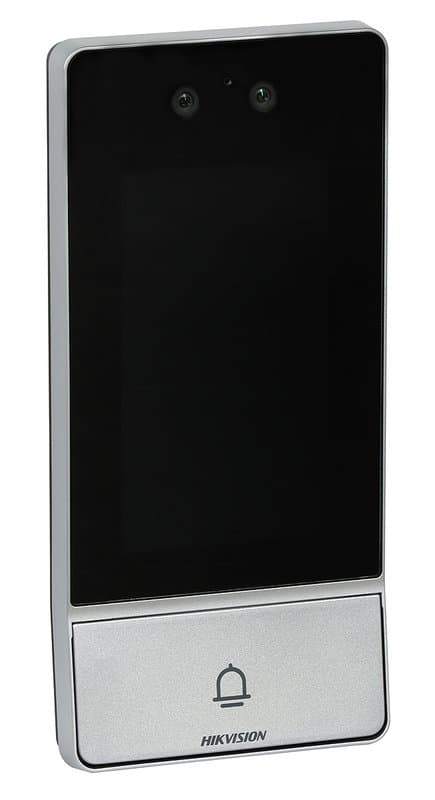

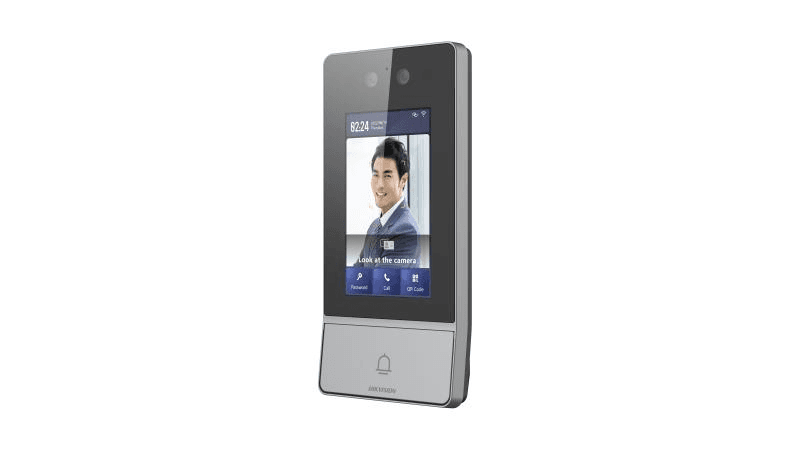

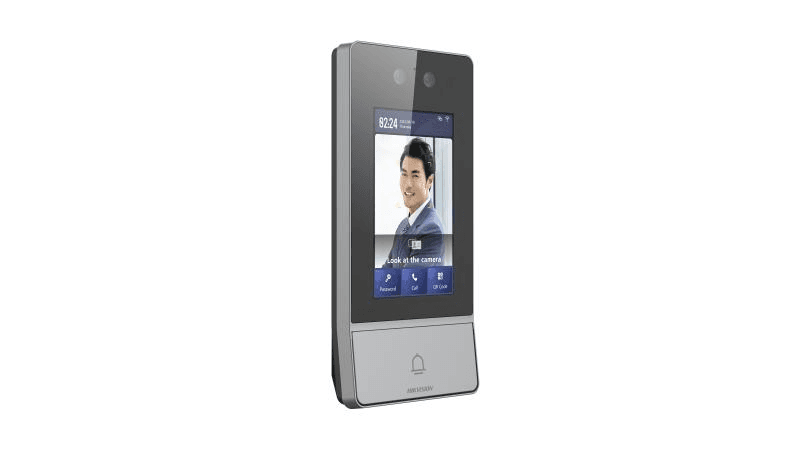

Metal Vandal-resistant Facial Recognition IP Villa Door Station

System parameters Operation system Linux ROM 4 GB RAM 1 GB Processor Embeded high performance processor Display parameters Screen size 4.3-inch Operation method Capacitive touch screen Type IPS Resolution 800 × 480 Luminance 425 cd/m² Video parameters Lens 2 Resolution 2 × 2 MP FOV Horizontal: 88°, Vertical: 44° Wide dynamic range (WDR) Support 120 dB Supplement light IR light, up to 3 m Video compression standard Main stream and sub stream: H.264 Third stream: H.265 Audio parameters Audio input 1 built-in omnidirectional microphone Audio compression standard G.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1 Audio output 1 built-in loudspeaker Audio compression bitrate G.711u、G.711a、Opus：64kbps；G.722.1、G.726：32kbps；AAC-LD、AAC-LC：16kbps Audio quality Noise suppression and echo cancellation Volume adjustment Adjustable Capacity User capacity 20000 Face capacity 10000 Fingerprint capacity / Card capacity 100000 Message capacity / Linked indoor station capacity 500 Sub door station capacity 16 Network parameters Network protocol TCP/IP, RTSP Wi-Fi IEEE802.11b, IEEE802.11g, IEEE802.11n Bluetooth Support：2.0 3G/4G / Authentication Card reading frequency 13.56 MHz Face recognition distance 0.3 to 2 m Face recognition accuracy rate ≥ 99% Face recognition duration ＜ 0.2 s per person Device interfaces Alarm input 4 (2 exit butttons and 2 door contacts by default) Network interface 1 RJ-45, 10/100 Mbps self-adaptive TAMPER 1 Exit button 2 RS-485 1 USB / Wiegand / TF card Reserved Lock control 2 relays, Max. 30 VDC 2 A, lock 2 needs secure module Door contact input 2 General Button 1 physical button Installation Surface mounting Indicator / Net weight: 0.405 kg Gross weight: 0.752 kg Protective level IP65, IK08 Working temperature -40 °C to 60 °C (-40 °F to 140 °F) Working humidity 10% to 90% (no-condensing) Dimension (W × H × D) 182 mm × 85 mm × 26 mm (7.16" × 3.34" × 1.01") Battery / Power supply 12 VDC, 1.5 A,IEEE802.3af, Standard PoE Application environment Outdoor Power consumption ≤ 6 W Language English,French,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek
