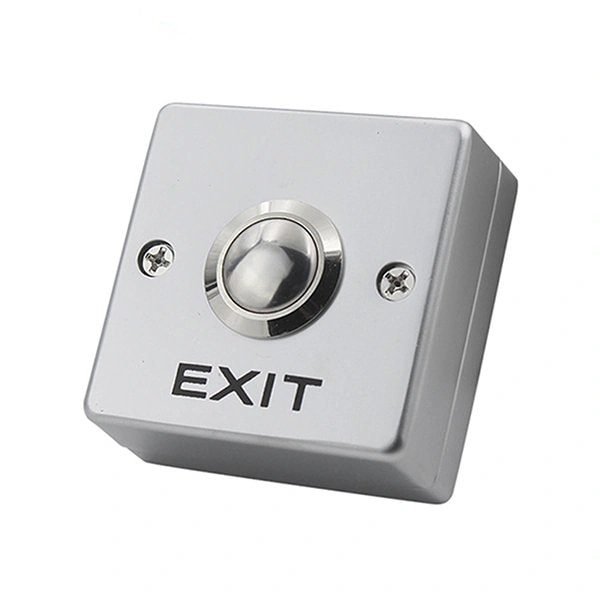

ACM-K15A Waterproof IP67 Exit Button

Key Features Durable push-to-exit switch for access control systems Suitable for fail-safe and fail-secure doors Simple installation with standard wiring Compact and robust design for long-lasting performance Compatible with most electronic door locks and access panels Provides convenient and safe exit for authorized personnel Technical Specifications Specification Details Model ACM-K15A Type Push-to-exit switch / door exit button Operating Voltage 12–24V DC Contact Type Normally Open (NO) / Normally Closed (NC) Max Current 3A @ 30V DC Material ABS housing & metal button Mounting Surface mount Dimensions 86 × 86 × 35 mm (approx.) Color White or standard industry finish Operating Temperature -10°C to +55°C Applications Office doors and commercial buildings Residential access control systems Retail stores, warehouses, and industrial doors Integrated with electronic locks, magnetic locks, or access control panels
