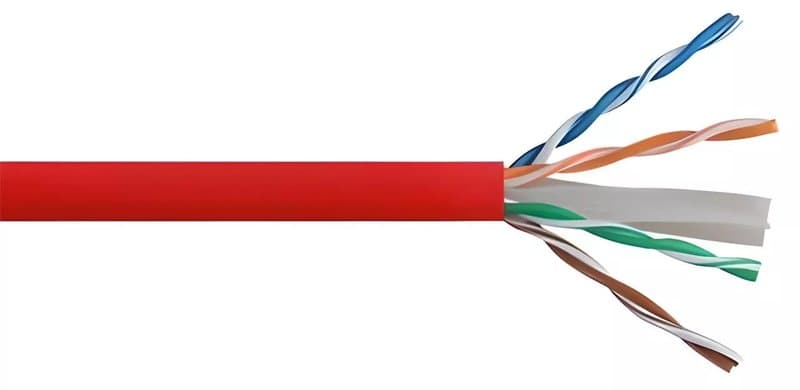

RJ45 CAT6 U/UTP Outdoor Ethernet Cable 1m Reel Red 23AWG Solid Copper
SKU: RJ45-CAT6-1M-REEL-RED-23AWG
CAT6 U/UTP outdoor-rated network cable featuring 23AWG pure solid copper conductors for 10GBase-T to 55m. Red PE/LDPE UV-stabilised weatherproof jacket for external duct, catenary suspension or building facade use. 4-pair unshielded twisted pair exceeding ANSI/TIA-568-C.2 Cat6 performance for Gigabit Ethernet and PoE++. Premium 23AWG gauge reduces insertion loss, supports IEEE 802.3bt PoE up to 100W over longer outdoor spans. 1m cut length from reel for custom RJ45 termination or field termination into patch panels/keystone jacks. 550MHz bandwidth rating; ideal for IP CCTV backbones, outdoor access points and structured cabling drops.
In Stock
Ready to ship • 1770 available
Product Description
The RJ45-CAT6-1M-REEL-RED-23AWG provides premium outdoor CAT6 U/UTP connectivity with 23AWG solid bare copper conductors optimised for high-bandwidth IP surveillance networks and PoE-powered security devices. The unshielded 4-pair twisted pair construction complies with ANSI/TIA-568-C.2 Category 6 standards, delivering 10GBase-T Ethernet to 55m, 1000Base-T to 100m, and Power over Ethernet up to IEEE 802.3bt Type 4 (90-100W) with minimal performance degradation. Red polyethylene (PE/LDPE) outer sheath offers superior UV/moisture resistance compared to indoor PVC, enabling aerial catenary wiring, external duct installations or direct facade mounting per local mechanical support codes. The heavier 23AWG conductors provide lower resistance and insertion loss versus standard 24AWG cable, preserving PoE budget and Gigabit margins on extended external runs between network cabinets and field IP cameras, outdoor wireless APs or access control readers. HDPE insulation maintains pair separation for excellent crosstalk performance (NEXT/PSNEXT), while sequential metre marking on the jacket simplifies Fluke/DSX certification and inventory tracking. 6.2-6.8mm overall diameter fits 20-25mm conduit and IP67-rated RJ45 outdoor glands. Supplied as 1m reel-cut sections for termination with precision CAT6 RJ45 plugs, keystone modules or IDC patch panels, creating compliant structured cabling permanent links or patch leads. Deployed alongside rack PoE switches and NVRs, it forms robust external network infrastructure supporting high-resolution IP video alongside VoIP and building automation convergence.
