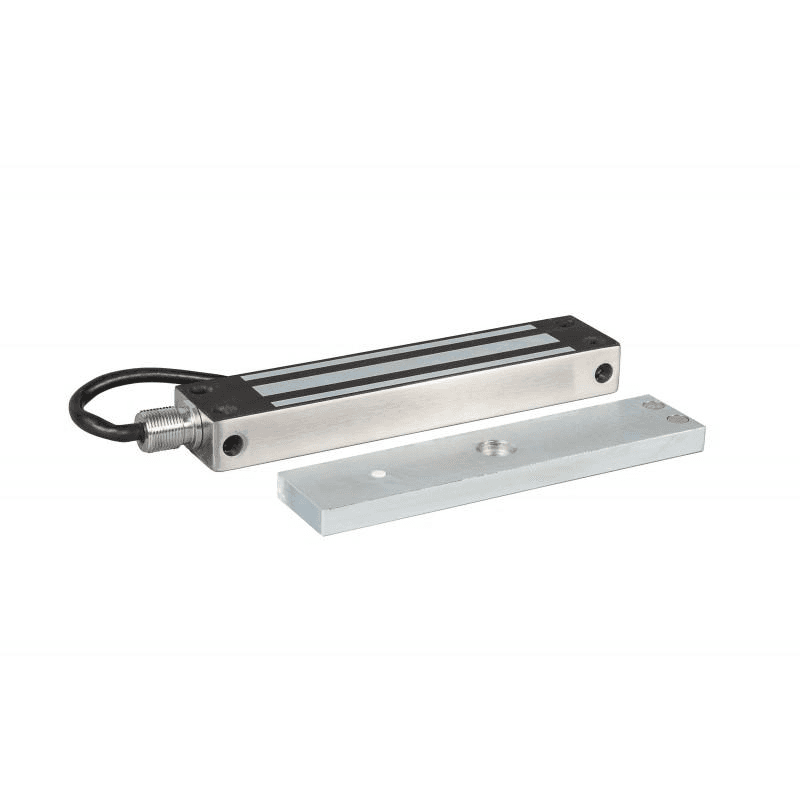

UKVISION 280KG Magnetic Door Lock 12V 24V Electromagnetic Maglock

The UKVISION UK-MAGLOCK-280KG electromagnetic door lock is designed for secure door locking in access control systems. The lock provides a holding force of 280kg, making it suitable for single door installations in offices, commercial buildings and controlled entry environments. The magnetic lock operates using an electromagnetic principle. When electrical power is supplied to the lock body mounted on the door frame, it generates a magnetic field that holds the steel armature plate attached to the door leaf. When the power supply is interrupted by an access control device such as a keypad, card reader or exit button, the magnetic field is released and the door unlocks. The device supports dual voltage operation at either 12V DC or 24V DC, allowing it to work with common access control power supplies and door entry systems. Magnetic locks operate in fail-safe mode, meaning the door unlocks automatically if power is removed, which is often required for emergency exit compliance. The lock is designed for surface mounting and can be installed on various door types including wooden doors, metal doors and glass doors when appropriate mounting brackets are used. It is commonly used in offices, apartment buildings, warehouses and other controlled access areas where electronic door locking is required.
