UKVISION 12V 10A 9 Channel CCTV Power Supply Distribution Box
SKU: PSU-BOX-12V-10A-9CH
• Regulated 12V DC output with total 10A current capacity • 9 individually fused power output channels for CCTV cameras • Maximum total output power 120W across all channels • Dedicated screw terminal outputs for secure camera connections • Individual PTC fuse protection per channel for fault isolation • Universal AC input voltage 100–240V 50/60Hz compatible • Metal enclosure with lockable cover for secure installation • Suitable for analog HD and IP CCTV camera power distribution
In Stock
Ready to ship • 27 available
Product Description

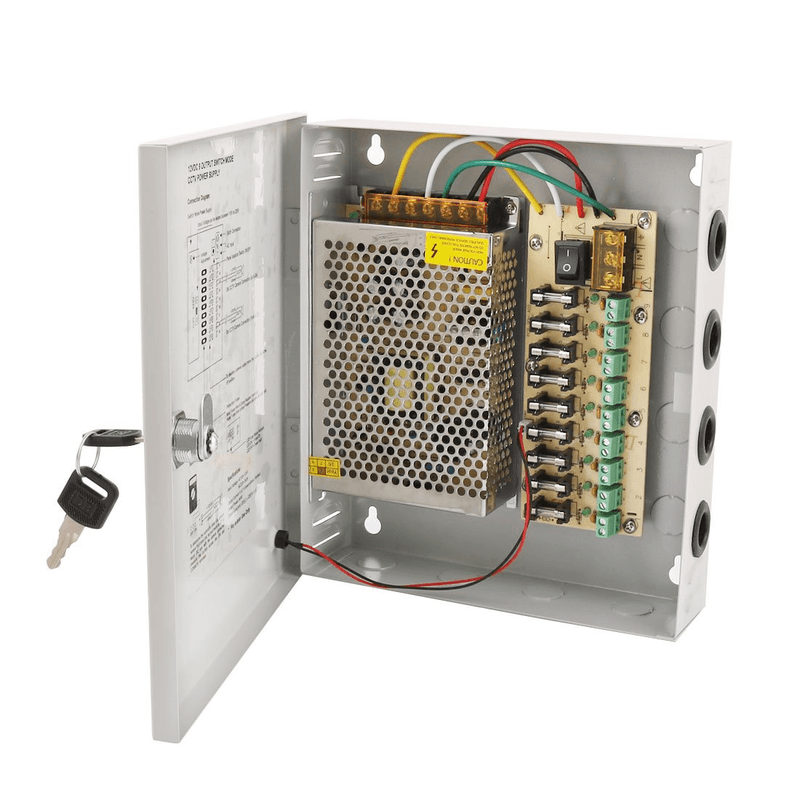

The UKVISION PSU-BOX-12V-10A-9CH is a professional CCTV power distribution box designed to provide centralized and regulated 12V DC power for multi-camera surveillance systems. With a total output capacity of 10A and maximum power rating of 120W, this unit supports simultaneous power distribution to up to 9 CCTV cameras through individually fused output channels. Each output channel features dedicated screw terminal connections and individual PTC fuse protection, ensuring reliable power delivery while protecting connected cameras from overload or short circuit conditions. This design allows fault isolation, preventing a single camera failure from affecting the entire system. The unit supports universal AC input voltage from 100V to 240V at 50/60Hz, making it suitable for UK and international installations. The internal regulated power supply ensures stable voltage output, reducing the risk of camera image instability, interference, or recording interruptions caused by voltage fluctuations. The enclosed metal housing provides physical protection and secure installation. This power distribution box is suitable for structured CCTV installations in commercial buildings, offices, warehouses, and residential security systems where multiple cameras require centralized and reliable power management.
