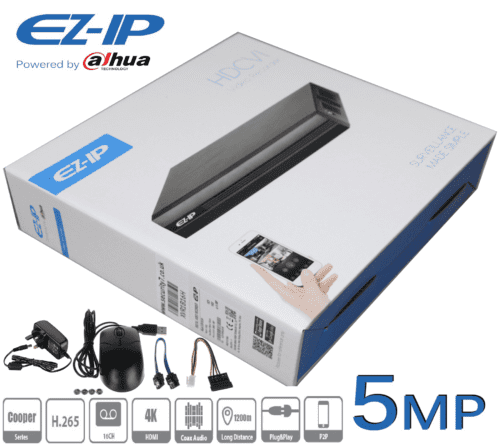

Dahua – 16 Channel Penta-brid 5MP 1080P WizSense Digital Video Recorder (DVR)

Model: DVR XVR1B16H

H.265+/H.265 dual-stream video compression
Supports Full-channel AI Coding
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 24 channels IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth
Long transmission distance over coax cable
Up to 16 channels video stream (analog channel) SMD Plus
POS functionalities

System

Main Processor

Embedded processor

Operating System

Embedded Linux

Operating Interface

Web; Local GUI

SMD Plus

SMD Plus by Recorder

16 channels:

Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

Analog Camera Input

16 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.

Camera Input

1. CVI: 5MP@20fps, 5MP@25fps, 5MP@10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps.

2. TVI: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps.

3. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps.

IP Camera Input

Up to 24 channels of IPC access

16 IP channels by default + 8 channels (analog channels are converted to IP channels)

incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps

*After IP channels are added beyond the existing channels, the AI Function SMD will be disabled.

Encoding Capacity

Main stream:

5MP Mode: 4-ch 5MP@(1-6fps); other channels 5M-N@(1-12fps)

5M-N Mode:

All channel 5M-N@(1–12fps);4M-N,1080p@(1–15fps); 1080N, 720p, 960H, D1,CIF@(1–25/30fps)

Sub stream: D1, CIF@(1–15fps)

Dual-stream

Video Frame Rate

PAL: 1 fps–25 fps.
NTSC: 1 fps–30 fps.

Video Bit Rate

32 Kbps–6144 Kbps Per Channel

Audio Sampling

8 KHz, 16 bit

Audio Bit Rate

64 Kbps

Video Output

1 HDMI, 1 VGA
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen Display

When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25

Third-party Camera Access

Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung

Description

About Dahua – 16 Channel Penta-brid 5MP 1080P WizSense Digital Video Recorder (DVR)

Upgrade your surveillance system with the Dahua – 16 Channel Penta-brid 5MP 1080P WizSense Digital Video Recorder (DVR), an advanced solution designed to meet the evolving security needs of businesses, homes, and public spaces. With support for up to 16 channels of recording and playback at stunning 5MP resolution, this DVR ensures crystal-clear footage for comprehensive monitoring and analysis.

Featuring Dahua’s innovative WizSense technology, this Dahua – 16 Channel Penta-brid 5MP 1080P WizSense Digital Video Recorder (DVR) offers intelligent video analytics capabilities that enhance situational awareness and streamline security operations. Advanced features such as smart motion detection, perimeter protection, and facial recognition enable proactive threat detection and rapid response, empowering users to identify and mitigate security risks in real-time.

Built with reliability and scalability in mind, the Dahua – 16 Channel Penta-brid 5MP 1080P WizSense Digital Video Recorder (DVR) offers flexible storage options and seamless integration with existing surveillance infrastructure. Its compact design and user-friendly interface make installation and setup hassle-free, allowing users to deploy and manage the system with ease. Whether you’re safeguarding a small retail store, a large corporate campus, or a residential property, the Dahua 16 Channel Penta-brid DVR provides unmatched performance and peace of mind, ensuring that your premises are protected around the clock.

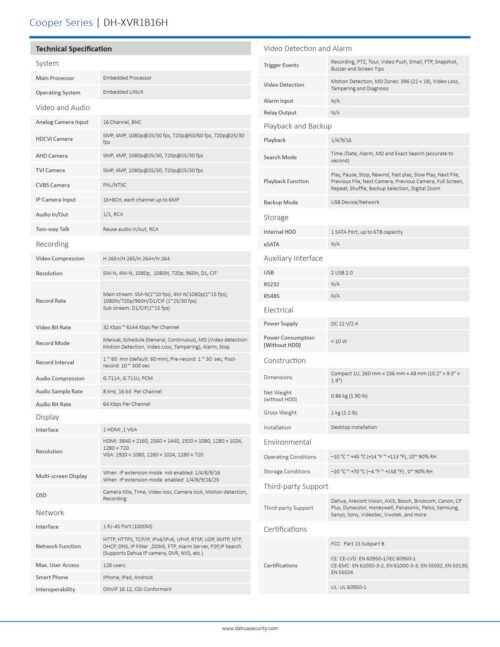

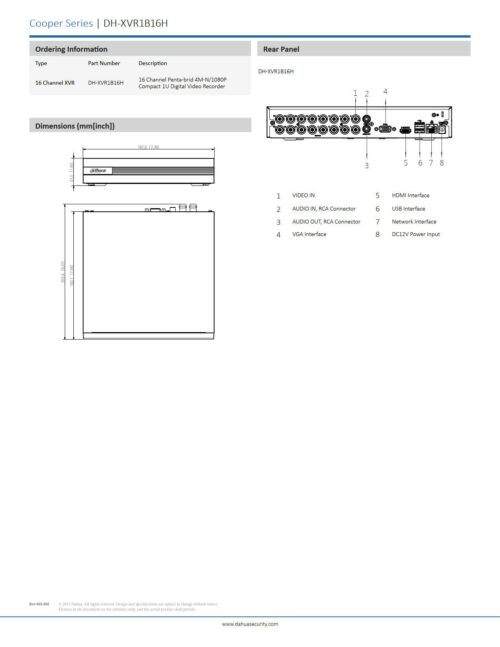

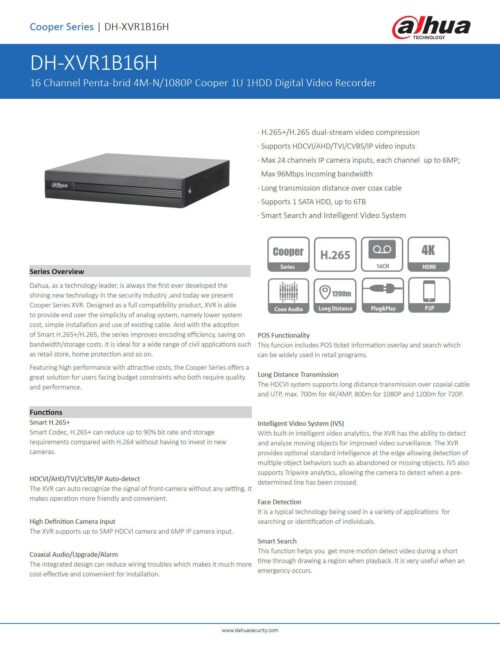

Datasheet
