Hikvision – 4 Channel 5MP 1U H.265 PoC Digital Video Recorder (DVR)

Model: DS-7204HUHI-K1/P

4 channels and 1 HDD 1U DVR
Efficient H.265 pro+ compression technology
Encoding ability up to 5 MP @ 12 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 8 network cameras can be connected
Transmits both HDTVI video and power over the same coaxial cable

Recording

Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/,CIF,
Frame RateMain stream: ,8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),*: 8 MP@8fps is only available for channel 1 of DS-7204HUHI-K1/P.,Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N),;Main stream: ,8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate32 Kbps to 10 Mbps
Dual StreamSupport
Stream TypeVideo, Video & Audio
Audio CompressionG.711u
Audio Bit Rate64 Kbps

Description

About Hikvision – 4 Channel 5MP 1U H.265 PoC Digital Video Recorder (DVR)

The Hikvision – 4 Channel 5MP 1U H.265 PoC Digital Video Recorder (DVR) is a cutting-edge surveillance solution designed to provide high-definition video recording and monitoring capabilities for small to medium-sized installations. With support for up to four channels of 5MP resolution, this DVR offers exceptional clarity and detail, ensuring that every frame is captured with precision. Whether you’re monitoring a home, small business, or retail store, this DVR delivers reliable performance and peace of mind.

Featuring H.265 video compression technology, this Hikvision – 4 Channel 5MP 1U H.265 PoC Digital Video Recorder (DVR) maximizes storage efficiency without compromising image quality. By reducing file sizes, it allows for longer recording times and lower bandwidth consumption, making it an ideal choice for installations with limited storage space or bandwidth constraints. Additionally, Power over Coax (PoC) technology simplifies installation by providing power to connected cameras over the coaxial cable, eliminating the need for separate power supplies.

The 1U rack-mountable design ensures easy integration into existing security setups, while intuitive user interfaces make setup and configuration straightforward. Remote access capabilities enable users to monitor their premises from anywhere via smartphones, tablets, or computers, ensuring that they stay connected to their security system at all times. With its robust features and reliable performance, the Hikvision – 4 Channel 5MP 1U H.265 PoC Digital Video Recorder (DVR) is an excellent choice for businesses and homeowners seeking advanced surveillance solutions.

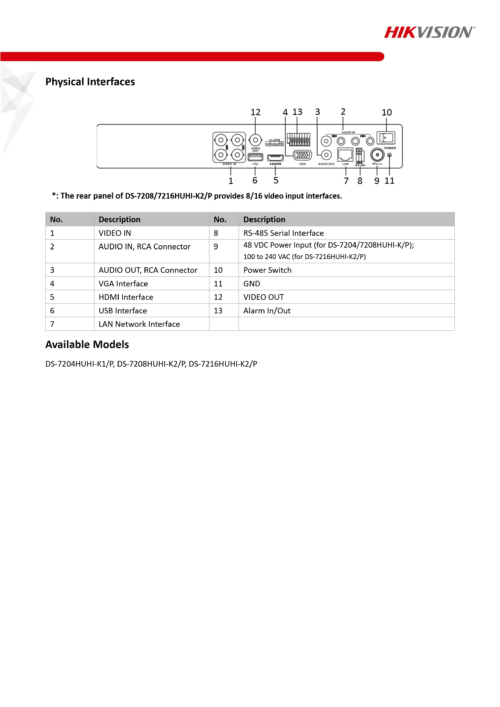

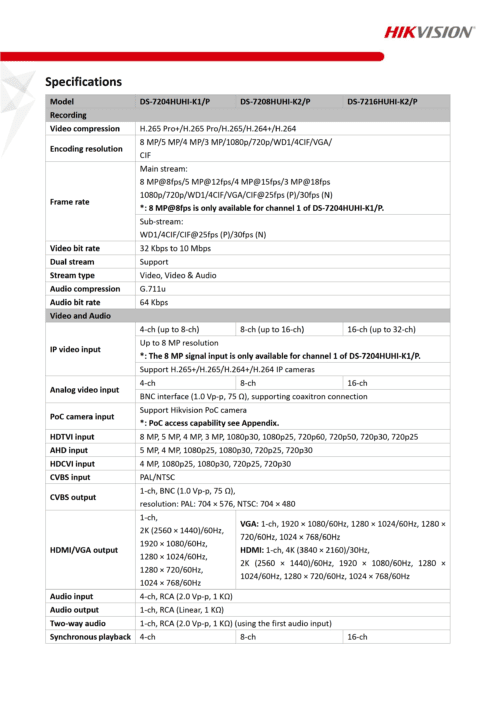

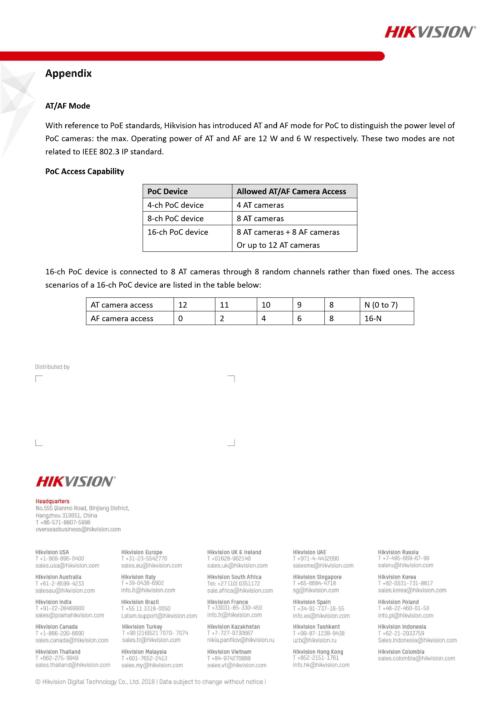

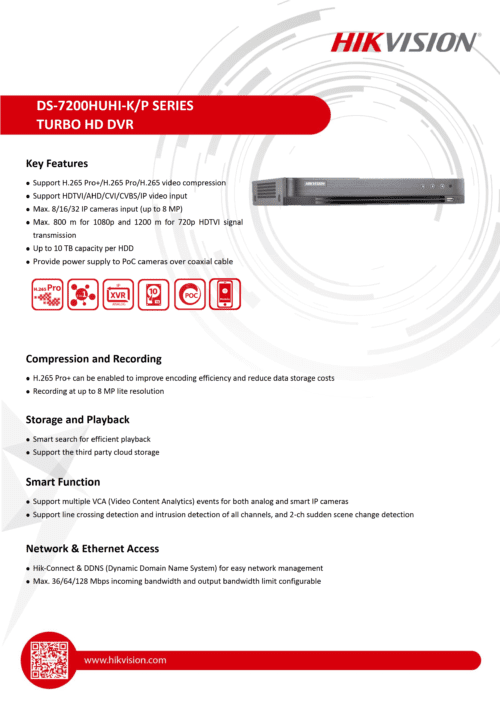

Datasheet

Quick Start Guide

User Manual
