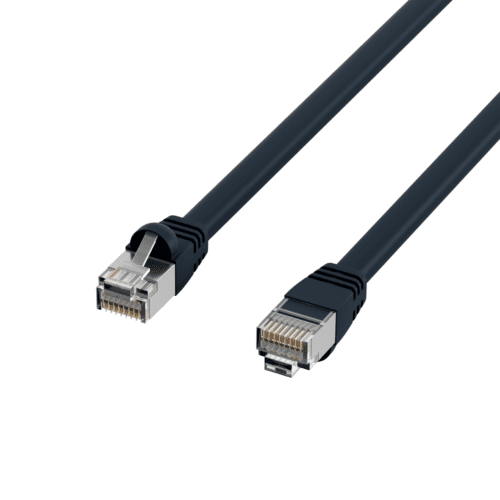

1M Cat6 RJ45 Ethernet Network Cable (Black)

Model: RJ45-Network-Cable-CAT6-1M-Blac

Technical properties

AWG-size: 26/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: plugged in
Area of Application: Data center
Industrial Ethernet
Structured cabling
Bandwidth: 250MHz
Bending radius: 27.5 mm
Cable construction: 4×2
Cable type: S/FTP
Cabling standard: EN50173
ISO/IEC 11801
Category: 6
Colour anti-kink sleeve: black
Colour outer sheath: black
Conductive shield: Selected shield contact
Conductor Material: Copper
Connector: IEC 60603-7-5
Connector type: RJ45 Standard
Contact Resistance: < 20 mΩ
Contacts: 50 µ” gold plated
Current Rating: max. 1 A
Fire retardant version: True
Flame retardant: yes
Halogen-free: No
Halogen free: False
Impedance: 100 ±15 Ω
Insulation Resistance: 500 MΩ
Length imprint: False
Locking lever: True
Material outer sheath: Polyvinylchlorid (PVC)
Mating cycles: 2000
Model: Shielded
NVP value: – %
Oil resistant: no
Oil resistant (acc. EN 60811-2-1): False
Oil resistant (according to EN 60811-404): False
Operating-/ tempering voltage: max. 50 V DC
Outer diameter of the cable: 6.5 mm
POE class: 4PPoE acc. to IEEE802.3bt
PoE+ acc. to IEEE802.3at
PoE acc. to IEEE802.3af
Pin assignment: 1:1
Printing: VOIP Cat.6 Patchkabel S/FTP AWG26/7 UL E132276-C CM 75°C 4PR PVC IEC332-1 ISO/IEC11801 TIA/EIA-568-B.2.1 *** VOICE OVER IP *** www.efb-elektronik.de
Resistant to chemicals: False
Suitable for degree of protection (IP): IP20
Temperature range: -5 – 75 °C
Test voltage: 1000 V DC, 1min
Transmission: 2.5Gbit
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)
UL approbated: True
